RP6502-WEB¶

RP6502 - Web Player

Introduction¶

With the RP6502-WEB, you can put a playable game on the GitHub page of your project, upload it to itch.io, or put it on your blog. One click on the link starts the game in a web browser, with no download and no emulator to install.

The RP6502-WEB is the machine for the web. It is a Picocomputer hosted in a web browser, with sound, a keyboard, a mouse, and up to four gamepads. The browser can keep high scores and saved games between visits, as described in Saves.

A web player is the game, the emulator and a page, which rp6502_web() builds into one zip. For GitHub Pages, a workflow builds and publishes the web players of a repository on every push to main, with a screenshot for the README. The same zip can be uploaded to itch.io, and any web server that serves plain files can host its files.

The Files¶

A web player is four files, served together from one folder:

index.html, the page, with the settings for the program.
rp6502.js and rp6502.wasm, the emulator.
The ROM, such as game.rp6502.

rp6502.js and rp6502.wasm are in the web zip on the releases page, with a sample index.html and program, and they are always replaced as a pair. In a CMake project, rp6502_web() builds all four files into a zip, as described in Building with CMake.

The Page¶

This index.html plays game.rp6502, which is in the same folder.

<!doctype html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<title>My Game</title>
<style>
  html, body { height: 100%; margin: 0; overflow: hidden; background: #000; }
  #game { height: 100%; }
</style>
</head>
<body>
<div id="game"></div>
<script src="rp6502.js" onerror="document.body.textContent = 'Could not load rp6502.js'"></script>
<script>
  rp6502('game', 'game.rp6502', {
    title: 'My Game',
    db:    'username-mygame',
  });
</script>
</body>
</html>

rp6502(container, rom, options) puts a player in the page:

container is the element for the player, or the id of an element in the page, such as 'game'.
rom is the program that runs, as a path from index.html.
options holds the settings listed below, and can be left out.

rp6502.js defines rp6502(), so a plain <script src>, with no async or defer, loads it before the script with the call.

The player is as wide as its container. In a container with no height, the screen is 4:3 and the footer goes below it. A container given a height is filled, as #game fills the window here.

A browser does not run a web player opened as a file, from a file:// address, because the ROM and the WebAssembly load only from a web server. To try a page on your own computer, start a web server in its folder and open http://localhost:8000.

python3 -m http.server 8000

Setting	Example	Description
`install`	`'game.bas'`	More files for the program, as a path from `index.html` or a list of paths. Each one is installed on the null drive, where the program reads it as `:` followed by the file name, in any case. See Installed ROMs.
`title`	`'My Game'`	The name in the browser tab while keys go to this player. Without it, the tab shows the `<title>` of the page.
`args`	`['-c1']`	The arguments for the program, argv[1] and on.
`db`	`'username-mygame'`	The name of the IndexedDB database for saves. Without it, saves last until the page closes. See Saves.
`bgcolor`	`'000000'`	The color around the picture when the player and the canvas have different shapes, as six hex digits, RRGGBB, with or without `#`. Default `000000`.
`border`	`'8px'`	Space around the game, in the `bgcolor` color, as a CSS length such as `8px` or `1em`. It keeps text on the edge of the canvas apart from the page around it.
`filter`	`'sharp'`	How pixels are scaled: `nearest`, `linear` or `sharp`. Default `sharp`, which enlarges by a whole number and then smooths.
`autoplay`	`'muted'`	When the program and the sound start: `on`, `auto`, `off` or `muted`. Default `on`. See Click to Play.
`overlay`	`'overlay'`	What covers the game while there is no sound: a play button by default, nothing with `false`, or the `<template>` with this `id`. See Click to Play.
`footer`	`'Arrows to move.'`	A line of HTML under the game, with links under it. See Footer.
`github`	`'user/mygame'`	The GitHub repository linked under the footer.

A setting that is left out, or left blank, is off or takes its default, except autoplay, which must not be blank. For example, Microsoft BASIC loads and runs a program named as an argument, and -c1 keeps the keyboard in capitals:

rp6502('game', 'basic.rp6502', {
  install: 'game.bas',
  args:    ['-c1', ':GAME.BAS'],
});

Saves¶

A program keeps high scores and saved games in files on the SAVE: drive, as described in Saves. In a browser, those files are stored in an IndexedDB database, and db is the name of that database. A browser holds one set of IndexedDB databases for each web site. A site that holds the games of many people shares that set among them, so there, name the database with your full user name and the full project name, such as rumbledethumps-flappycoo. A site of your own, such as a GitHub Pages site, <user>.github.io, holds only your projects, so there the full project name is enough. With db blank, saves last until the page closes.

Click to Play¶

A browser usually plays no sound on a page until a click or a key press there, so a player is silent until a click on it or a key that goes to it. While a player is silent, an overlay covers the game with a play button, and the click starts the sound and removes the overlay.

A page cannot scroll when it fits in the window, or when html or body has overflow: hidden, as in the page above. On a page that cannot scroll, keys go to the player while nothing else in the page has the focus. There, the sound starts when the page loads if the browser allows sound without a click, and otherwise at the first key. Autoplay policy in Chrome lists when Chrome allows sound without a click. On a page that scrolls, the arrows and Space scroll the page until the player is clicked.

autoplay sets when the program starts, and whether keys and sound start before a click:

Value	Description
`on`	The default. The program starts when the page loads. Before a click, keys and sound start only on a page that cannot scroll.
`auto`	The program starts when the sound starts, so it begins with sound. Otherwise the same as `on`.
`off`	The program starts at the first click on the player.
`muted`	The program starts when the page loads, without sound and under the overlay. Keys and sound start at a click on the player.

The play button is styled with these CSS custom properties, set on :root for every player in the page, or on one container, such as #game:

Property	Description
`--rp6502-play-x`, `--rp6502-play-y`	The position of the button and the “Click to play” label, from the left and from the top. Default `50%`.
`--rp6502-button-size`	The width of the button. Default `clamp(56px, 18cqmin, 96px)`, where `1cqmin` is 1% of the shorter side of the screen.
`--rp6502-overlay-background`	The color over the game. Default `rgba(0, 0, 0, .45)`.

--rp6502-play-y: 70% moves the button lower, over an empty part of a title screen:

#game { --rp6502-play-y: 70%; }

A <template> in the page can replace the play button. The browser keeps the HTML in a template without showing it. overlay names the template by its id, and the first element in the template is placed over the game. To add a simple overlay to the page above, put this style in <head> and this template in <body>, before the scripts:

<style>
  .overlay {
    position: absolute; inset: 0; cursor: pointer;
    display: grid; place-items: center;
    background: rgba(0, 0, 0, .5); color: #fff;
    font: 20px system-ui, sans-serif;
  }
</style>

<template id="overlay">
  <div class="overlay">&#9654; Click to play</div>
</template>

Then name it with overlay:

rp6502('game', 'game.rp6502', {overlay: 'overlay'});

Footer¶

footer is a line under the game, such as the controls. Under it, a second line links to the GitHub repository in github, to the ROM for download, and to this site:

footer: 'Arrows to move, Space to fire.',
github: 'user/mygame',

The footer is HTML, so it can include a link, which opens in a new tab with target="_blank" instead of in place of the game. The game is scaled to the space above the footer. Without footer, there is no footer; a page of your own can put any HTML under the container instead.

License Notices¶

With ?credits at the end of its address, such as https://example.com/game/?credits, the page shows the license notices of the components in rp6502.js and rp6502.wasm.

Players in a Page¶

A page can hold several players, such as a blog post with a game after each listing. These lines put two players in a page, with the play button of the first one lower:

<style>
  #game1 { --rp6502-play-y: 84%; }
</style>
<div id="game1"></div>
<div id="game2"></div>
<script src="rp6502.js"></script>
<script>
  rp6502('game1', 'starhopper.rp6502');
  rp6502('game2', 'adventure.rp6502');
</script>

A page loads rp6502.js once, for any number of players. Each call makes a separate player, with a separate program, screen and sound. rp6502() returns the player, an object with element, the container, and destroy().

Keys, a paste and gamepads go to the player with the focus, and a click on a player moves the focus to it. On a page that cannot scroll, as described in Click to Play, keys go to the last player clicked while nothing in the page has the focus, and to the first player before any click. Players that run at the same time need different db names, because a database is used by one player at a time.

Removing a Player¶

destroy() stops the program, stores the saves, frees the database for another player, and removes everything the player added to the container. It returns a Promise that resolves when the saves are stored. A new player can go in the same container at once. For a new player with the same db, wait for the Promise first, as in this function, which changes the program:

let player = rp6502('game', 'one.rp6502', {db: 'me-games'});

async function change(rom) {
  await player.destroy();
  player = rp6502('game', rom, {db: 'me-games'});
}

Removing the container from the page does not stop the player, so call destroy() first.

In a Web Component¶

A player works in a shadow root, such as in a web component. Pass the element itself as container, because an id is looked up only in the document. overlay can name a <template> in the same shadow root. The style rules of the page do not apply inside a shadow root, but the --rp6502-* properties set on the host element or on :root do, so my-arcade { --rp6502-play-y: 84%; } in the page moves the play button of the element below:

class MyArcade extends HTMLElement {
  #shadow = this.attachShadow({mode: 'closed'});
  #player;

  connectedCallback() {
    const screen = document.createElement('div');
    this.#shadow.replaceChildren(screen);
    this.#player = rp6502(screen, this.getAttribute('rom'));
  }

  disconnectedCallback() {
    this.#player.destroy();
  }
}
customElements.define('my-arcade', MyArcade);

<my-arcade rom="game.rp6502"></my-arcade>

The shadow root is stored in a private field, so the same code works for a closed root, where this.shadowRoot is null.

Building with CMake¶

In a CMake project, rp6502_web() packages a ROM with the emulator and a page into a zip, ready to upload. This line builds web/game.zip in the build folder from the ROM of the game target, with the page from the web zip and the emulator of the latest release:

rp6502_web(game)

The same files are unpacked next to it in web/game/. CONFIG sets options, as JavaScript, with a comma after each one:

rp6502_web(game CONFIG [[
    title: 'My Game',
    footer: 'Arrows to move, Space to fire.',
]])

The options in CONFIG replace the same options of each rp6502() call in the page, and the others are added. The rom argument is always the ROM of the target, and github is the GitHub repository that the git remote of the project names, unless CONFIG names another. PAGE gives a page of your own, and OUTPUT names the zip, so one ROM can be packaged for several sites:

rp6502_web(game OUTPUT pages.zip PAGE web/pages.html)
rp6502_web(game OUTPUT arcade.zip PAGE web/arcade)

A file after PAGE is stored in the zip as index.html. A folder is copied into the zip with its subfolders, and an index.html at its root is the page. A page of your own holds a container, loads rp6502.js with <script src="rp6502.js">, and calls rp6502() in a later script, as in The Page.

EMULATOR names the web zip that rp6502.js and rp6502.wasm come from, in the forms of Fetching BASIC and the Emulator:

rp6502_web(game EMULATOR tools/rp6502-web.zip)

In VS Code, choose “RP6502-WEB” in the Run and Debug side panel and press F5. The project is built, and the browser opens a page with a link to every web player in the build folder.

GitHub Pages¶

GitHub Pages publishes web pages from a GitHub repository, so a link in the README of a game can open a web player for it. The players are named in the markdown of the repository, and a workflow from picocomputer/.github builds each one with rp6502_web() and publishes it on every push to main.

On GitHub, open Settings > Pages, and set Source to GitHub Actions.
Put this comment above the play link in README.md, or in any other markdown file of the repository. GitHub does not show it.
```

[Play My Game](https://username.github.io/mygame/game/)
```

Add .github/workflows/web.yml:

name: Web
on:
  push:
    branches: [main]
  workflow_dispatch:
    inputs:
      source:
        description: Branch, tag or commit to build
      emulator:
        description: Emulator, in the forms EMULATOR takes
jobs:
  web:
    uses: picocomputer/.github/.github/workflows/web.yml@main
    with:
      source: ${{ inputs.source }}
      emulator: ${{ inputs.emulator }}
    permissions:
      contents: read
      pages: write
      id-token: write

Push. Each player is at https://<user>.github.io/<repository>/<name>/, where <name> is the zip without .zip, and https://<user>.github.io/<repository>/ lists them.

A repository can have a comment for each of its zips, such as one for each example in a collection. Each line of a comment is a key and a value:

Key	Description
`preset`	The CMake preset that builds the zip, such as `cc65/Release`, `llvm-mos/Release` or `basic`. Required.
`publish`	The zip that `rp6502_web()` makes, such as `game.zip`. It is published at `game/`. Required.
`folder`	The folder of the CMake project, when it is not the root of the repository.
`frames`	The number of frames, 60 a second, that the program runs before the screenshot. Default 120.

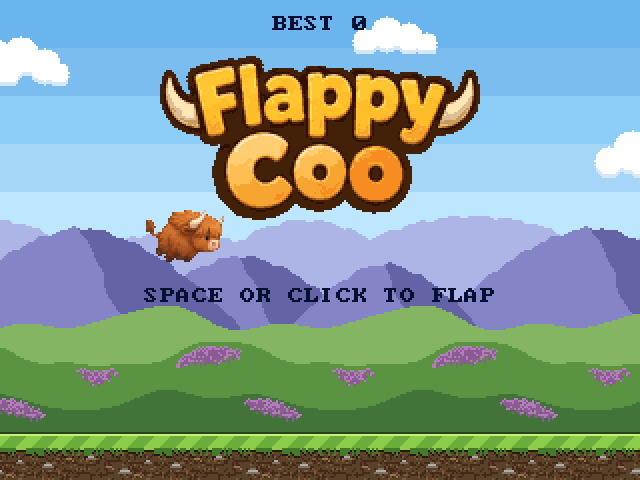

The workflow also runs each ROM in the emulator and publishes the screen at <name>/screenshot.png, 640 pixels wide, so that a README can show a current picture of the program with no image in the repository. frames sets how long the program runs first, such as until its title screen. The program gets the same random numbers on every run, so the same frames gives the same picture. This comment and link show the screenshot:

<!-- rp6502
preset: llvm-mos/Release
publish: flappycoo.zip
-->
[![Play Flappy Coo](https://rumbledethumps.github.io/flappycoo/flappycoo/screenshot.png)](https://rumbledethumps.github.io/flappycoo/flappycoo/)

“Run workflow” on the Actions tab of the repository runs the workflow by hand. source builds another branch, tag or commit of the repository, and emulator replaces the EMULATOR of every rp6502_web(), in the forms of Fetching BASIC and the Emulator. A commit of the emulator is for testing: it comes from the CI build of that commit, which is kept for 90 days, and the build of a pull request is the pull request merged with main.

Other Web Servers¶

Any web server that serves plain files can host a web player: copy the files of the zip into one folder. rp6502.wasm is loaded from the folder of rp6502.js, and the ROM is loaded from a path relative to index.html.

On itch.io, the zip is uploaded as it is, to a project of the HTML kind, and marked to be played in the browser. itch.io serves the games of many people from one site, so name db as described in Saves.

A web player can be shown inside another page with an <iframe>:

<iframe src="game/index.html" width="640" height="480"
        allow="autoplay; fullscreen; gamepad"></iframe>

The game on the home page of this site is a web player in an <iframe>.
